Dollies
LONG-LASTING AND DURABLE

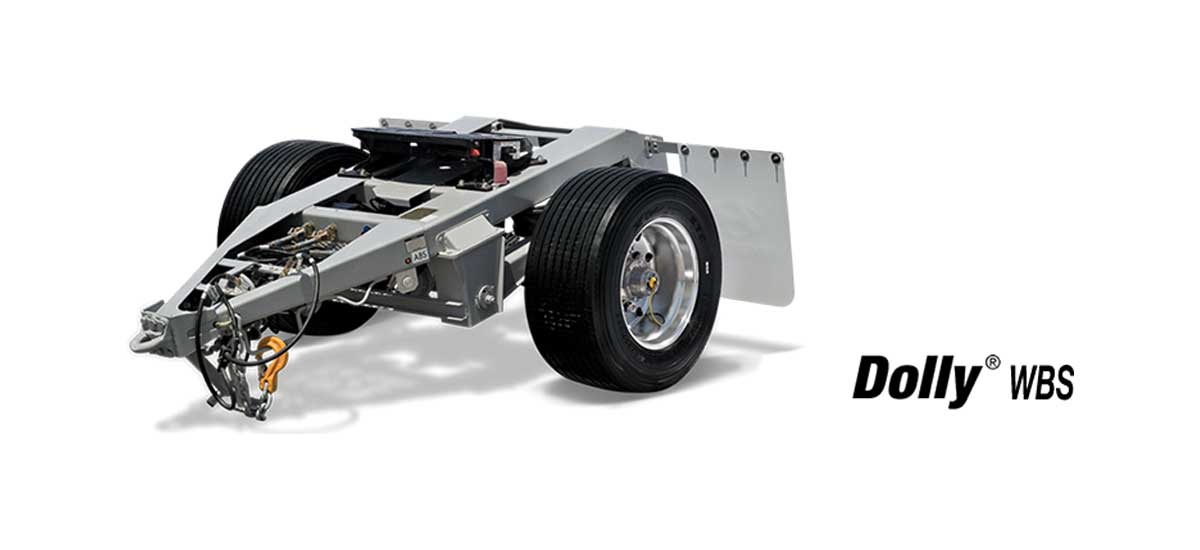

The long-lasting and durable HT Converter Dollies are available in a complete line of configurations including standard, Wide Base Single and Tandem options as well as hot dipped galvanized body configurations.
The long-lasting HT Dollies are available in a wide variety of choices for your required needs.
FEATURES & BENEFITS
SPECIFICATIONS
OPTIONS
REQUEST A QUOTE
FEATURES & BENEFITS

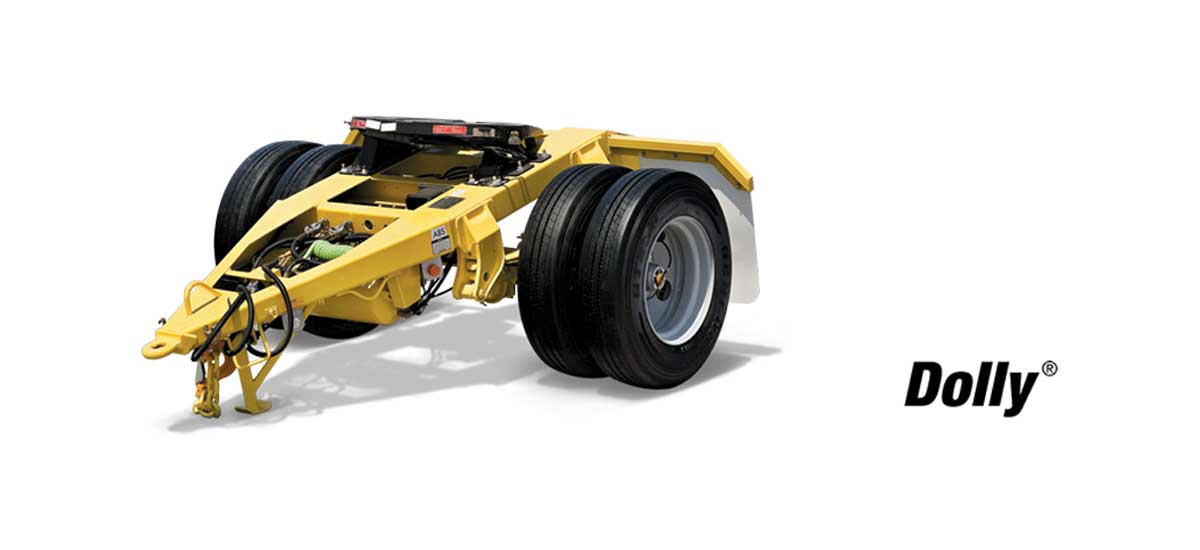

SINGLE AXLE CONVERTER DOLLY
- Standard “A” frame design
- Spring Air Ride Suspension available
- Triples-rated
- Lightweight yet sturdy
- Custom built to fit your fleet

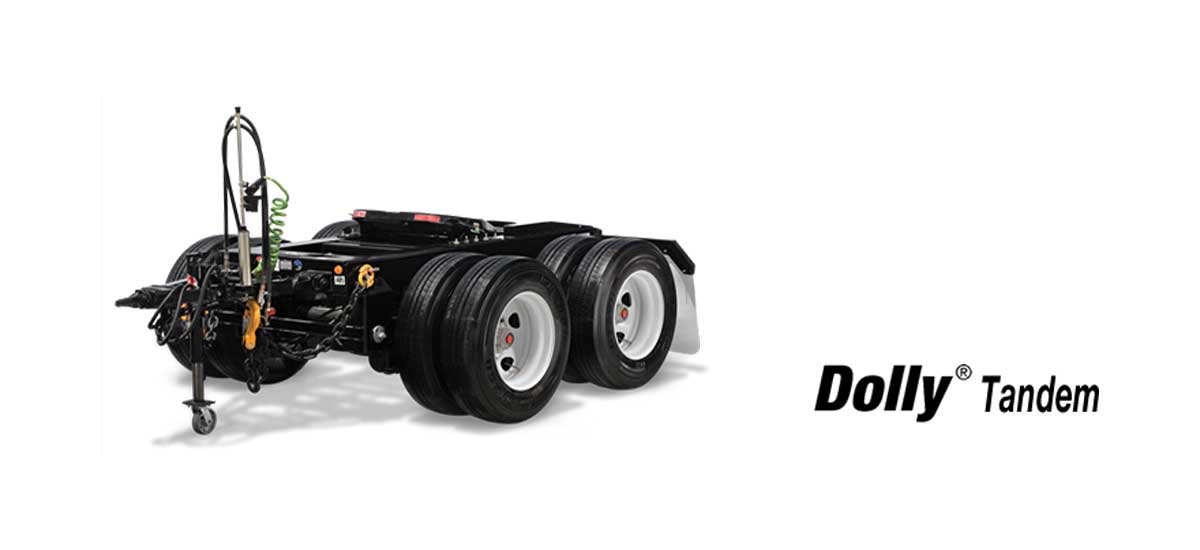

HT TANDEM AXLE CONVERTER DOLLY
- Hinged drawbar type with swivel eye standard
- Corrosion resistant features
- Heavy duty for heavy hauls
- Custom built to fit your fleet
- Optional HOT-DIP GALVANIZING is available
SPECIFICATIONS
- Standard “A” frame design
- Optional Hot Dipped Galvanizing available
- Lightweight yet sturdy
- Triples rated
- Built where your trailer are built
- Custom built to your fleet
- Spring air ride suspension available
| GENERAL | |
|---|---|
| Drawbar Length | 53′ 878″ center of eye to center of fifth wheel |
| Drawbar Height | 34″-35″ |
| Width | 102.36″ (across tires) |
| Fifth Wheel Height | 47.5″ (Nominal) |
| Tare Weight | 3,050 lbs |
| BODY CONSTRUCTION | |
|---|---|
| Rails | .25″ thick and 6″ deep channel |
| Drawbar | Fixed tapered ‘A’ frame type with 2-3/8″ I.D. drawbar eye |
| Safety Chain | 75″ grase 8 alloy steel chain, triple rated |
| Safety Hooks | Grage 8 alloy steel with safety latch, triple rated |
| Fifth Wheel | Jost JSK37010-PM9X with roadside release handle |
| Support Gear | Steel stiffleg with fixed shoe |
| SUSPENSION | |
|---|---|
| Suspension | Single axle Hutch H-9700 |
| Springs | 3-leaf H-356 low arch |
| Axles | 5″ round, 22,500 Lb rating, 77-1/2″ track, 16-1/2″×7″ with non-asbestos lining |
| Brake System | 2S-1M brake system |
| Oil Seal System | Stemco guardian with platinum performance system |
| Wheel | 22.5×8.25 steel disc |
| Tires | Low profile 22.5 radial tires |
| ELECTRICAL | |
|---|---|
| Lights & Wiring | Color coded 12-volt sealed system with internal ground, and watertight molded connectors to accept sealed lamps |
| PAINT & FINISH | |
|---|---|
| Paint | All steel parts are shot blasted, coated with zinc rich primer |
| Miscellaneous | Two swing away lifting handles, one each side of drawbar. Meets counter balanced per TMC RP-721 |
| Warranty | Limited five year warranty. |
OPTIONS
Hyundai Translead offers a wide variety of options and packages to fit your operations.
Wire Loom
Wire Loom protects air and electrical lines.
Body Construction
Available in two piece body construction.

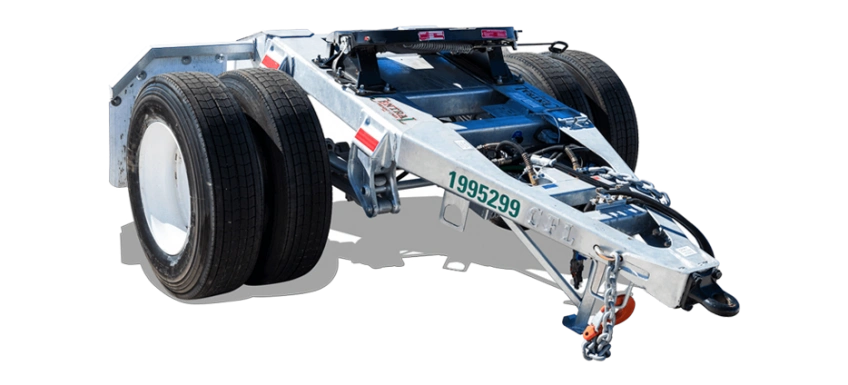

Hot Dipped Galvanized
Hot Dipped Galvanized body option available.
